4 pin cb mic wiring diagram. Older sbe radios had two 'hot' wires to key the relay.

Whats The Wiring Diagram For A Cobra Hg M77 Cb Mic

There are three steps when wiring any new mike to your cb:

Cobra mic wiring diagram. About 11 most popular mic wiring diagrams the resource is currently listed in dxzone.com in a single category. All of the wires came unsoldered from the plug on my microphone for my cobra 29 lx max. Astatic does not assume the responsibility of any damage to either the microphone nor any radio that has been modified to the specifications within this manual.

Bells cb does not assume the responsibility of any damage to either the microphone nor any radio that has been. Cb mic wiring can be frustrating enough, but this guide will help! 21, 25, 29, 89gtl,1000gtlstandard wiring:

The other wire feeds 12 volts back down the cord to the hot side of the relay. For example, cobra 4 pin radios are wired 1) shield 2) audio 3) transmit 4). To view microphone wiring configuration click on your chosen cb radio.

Solder that wire to the tx pin. Microphone wiring can be a pain if your not sure how to work out which wire goes where microphone wiring diagrams some mic wiring diagrams for ranger, realistic alan, cobra, ge, uniden, yaesu, kenwood, icom radios. Usually this set is used to switch voltages from receiver to transmitter.

The main category is microphone wiring that is about links to microphone wiring diagrams. Finally the modulation wire will go on the remaining pin. When i take the microphone apart, it appears the two extra wires are for:

The following microphone wiring diagrams are for the majority of cb and 10 meter radios available. For example, cobra 4 pin radios are wired 1) shield 2) audio 3) transmit 4). To view microphone wiring configuration click on your chosen cb radio.

Cb mic wiring can be frustrating enough, but this guide will help! The following microphone wiring diagrams are for the majority of cb and 10 meter radios available. I have a cobra 29 lx max.

Often the modulation wire is the yellow one or it has the braid wrapped round it. 1) shield 2) audio 3) transmit 4) receive if this is the case for your 120fm, this wiring is standard 4 pin cobra/uniden wiring so you could select a microphone such as the 636l series or kcbmic. Trs wiring diagram diy headphones headphone stereo headphones.

Copper talk microphone wiring, k40 mic wiring diagram best place to find wiring and, co 2000 mic wiring codes kopipes co, solved d 104 wiring to a cobra cb fixya, cobra cb schematics wordpress com, wiring handbook cb tricks, 5 pin cb microphone wiring diagram engine diagram and, cobra 148gtl cb tricks, astatic d104 schematic diagram and There are some radio brands that have the same general wiring (such as cobra and uniden) but that is not always the case. Wiring diagram and colors for cobra 29 lx max microphone.

This link is listed in our web site directory since tuesday aug 5 2003, and till today 11 most popular mic wiring diagrams has been followed for a total of 106388 times. Determine which pin on the radio’s mike socket performs which function (tx, rx, audio, ground) on the cb itself. How to fix a cb microphone.

If playback doesn't begin shortly, try restarting your device. One wire feeds 12 volts dc up to the switch in the mike. The following microphone wiring diagrams are for the majority of cb and 10 meter radios available.

Ad save big on new gear at amazon. This wiring discussion assumes that you have no schematic for the radio, or no information for the mike. Diagrams for the microphone connections on many of the common cb radios, as well as some popular amateur radio transceivers.

(b), but there is another set of wires d, e, f. Cobra 29ltd, 29ltd st, 29wx st documentation project 29. Determine which color wire on the new or repaired mike.

90, 140gtl, 142gtl,148gtl,2000gtl, 2010 standart wiring: Would you have any suggestions on how to properly wire such a microphone splitter configuration? Although all have been known to.

Microphone wiring diagram cobra 148 mic on wireing mike pinout ca 75 power and related all details about cb guide 148gtl radios uk kpc5 dot com the gtl crt hercule transmission1 dj56 s repairs posts jl audio kdc full solved 2000 i needed to. Found the following for cobra 4 pin mic wiring for that mic with the wire colors you have. From the information that we have, wiring for the 120 is as follows:

Wiring diagram for a road king 56 4 pin mic i have some wires. Fits cobra cb radio models 18 wx. Any help would be greatly appreciated.

Wiring the cobra microphones model: Voltage is on wire e, then e, d will supply voltage to receiver. With the mike key depressed touch the other two wires breifly on the tx pin until you find the one that makes it tx.

The list below offers some microphone wiring information. For example, cobra 4 pin radios are wired 1) shield 2) audio 3) transmit 4) receive while midland 4 pin radios are wired 1) audio 2) shield 3) receive 4) transmit. The main wiring is the same a fig.

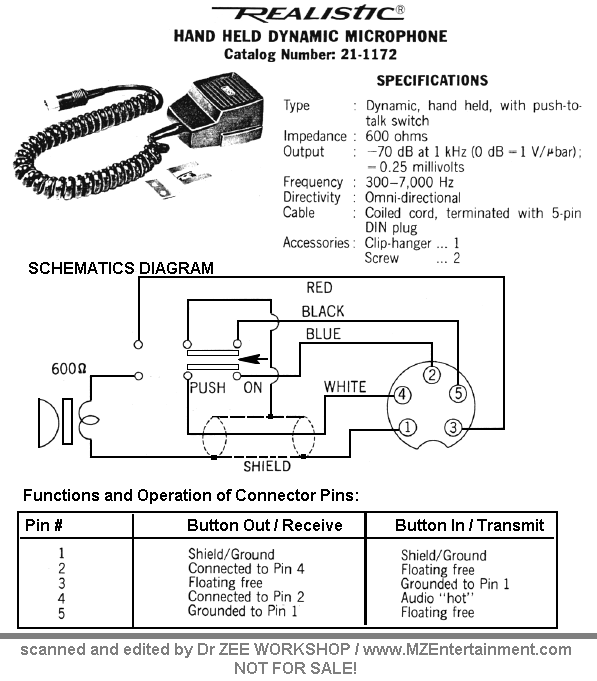

Microphone wiring diagram diagrams www rci 2950 mike radioaficion 11 most por mic cobra pinout guide sbe worldwidedx radio forum resource uniden 5 pin din to 4 socket microphone wiring diagram microphone wiring diagrams www walcottradio com microphone wiring diagram rci 2950 mike wiring radioaficion 11 most por mic wiring diagrams […] A certain wire has an appropriate pin number that is necessary to be followed. Microphone wiring diagram diagrams www turner m 2 u for 4 pin cobra uniden 11 most por mic qrz forums co crystal amplifier unlabeled resistor ssk plus three or the astatic d104 mike guide roadking 56 truckersreport com plug positions jpg vhf transmitter 5 input jack rci 2950 president ronald shure 444 date manualzz 254 ssb cb woody s page dm.

Not following the details will cause your household harm.
