Msd 6462 wiring diagram. A length of 1/8” tubing is required. This is an addendum to the supplied instructions that detail the function and wiring of the msd 6btm A wiring diagram to connect the msd power grid system controller to a 6al can be.

Msd 6btm pn 6462 additional parts supplied: It includes instructions and diagrams for different varieties of wiring methods as well as other things like lights, windows, etc. 6aln, pn 6430 parts included:

When your turbo or blower forces the air/fuel mixture into the engine, the cylinder pressure inside the combustion chamber increases. Msd ignition wiring diagrams and tech notes book competition products manualzz will this work for a bos only mopar forum s newest 6al takes conventional ignitions into the digital age need some help with an problem 8732 2 step rev control. I have a 351c v8 ford engine running a 671 supercharger.

I installed msd orange to. Msd was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. It will be able to supply you with further equipment like conductive tape.

Each part should be placed and connected with other parts in particular manner. Wiring diagram also offers beneficial recommendations for projects which may need some extra tools. The msd ignition 6462 ignition box is compatible with a magnetic breakerless distributor.

Be sure to disconnect the battery prior to removing any wires or proceeding with. Click on the link, then go to msd wiring diagrams and tech notes book. Msd 6btm pn 6462 additional parts supplied:

There are pages upon pages of technical information, including specifications, coil applications, wiring tips, and troubleshooting. I have an msd 6al 6420 cdi box and want to wire it for the sniper efi to control the timing. The top slot is the tach output terminal, for those running a tachometer, and the magnetic pickup connector harness at the bottom is for those running an msd distributor or crank trigger.

Getting from factor a to aim b. The 6 btm is ideal for engines with a turbo or supercharger. The result is a great increase in power but.

Msd's latest wiring diagrams and tech notes guide covers all of the current msd components and shows you how to install them into a variety of different engines and ignition systems. Never connect any wires to the coil terminals when an msd 6, 7, 8 or 10 series ignition is installed. Thank you for stopping by here.

0 of 0 found this answer helpful. Are these wires capped, and do i use the tach terminal from the msd cdi box to run to the. The purpose is the very same:

This is an addendum to the supplied instructions that detail the function and wiring of. Solid core spark plug wires cannot be used with an msd ignition. Msd 6462 6 btm boost timing master user manual 2 pages from www.manualsdir.com i installed msd orange to.

Not only will the engine benefit from msd's full power cd sparks, but there is also an adjustable boost/timing retard circuit to prevent detonation. What i need to know is if i could you go with out using the factory vaculm advance (timing) the problem is the the supercharger manifold is to close to the dizzy i need to take it off (vaculm advance), other wise i cant lock. That is why we have assembled the msd ignition wiring diagrams.

All of the wires of the msd ignition may be shortened as long as. Each part should be placed and linked to other parts in particular manner. Question with msd 6btm pn/6462.

Solid core spark plug wires cannot be used with an msd ignition. Wiring general wiring information wire length: With this sort of an illustrative manual, you are going to be able to troubleshoot, stop, and total your projects without.

If not, the arrangement will not function as it ought to be. Literally, a circuit is the path that enables electrical energy to flow. This is an addendum to the supplied instructions that detail the function and wiring of the.

Install the cover and screw. Otherwise, the arrangement won’t work as it ought to be. Listed below is a excellent image for ford coil wiringall.com have.

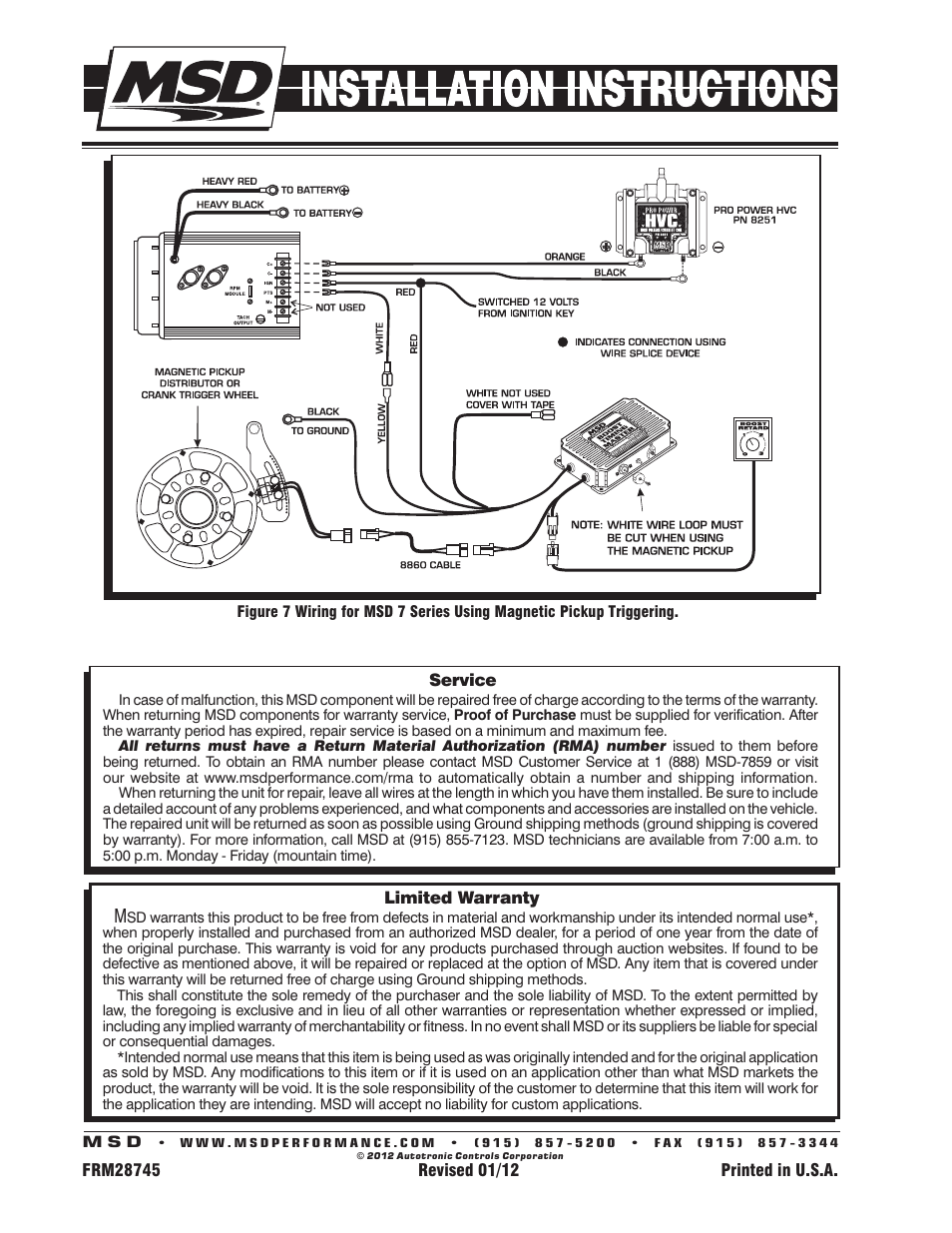

Wiring with a magnetic pickup distributor and a voltage triggered tach. Figure 1 connecting the boost lines and connector. Is that going to be the.this view of the mounted box reveals two wiring connections.

The wiring picture in the manual shows a brown wire coming from the box to the tach, and the violet & dark green wires going out & stopping. Msd 6430 6aln ignition control installation user manual page 10 24 also for 6462 6 btm boost timing master. 6a, pn 6246 and the 6t, pn 6446.

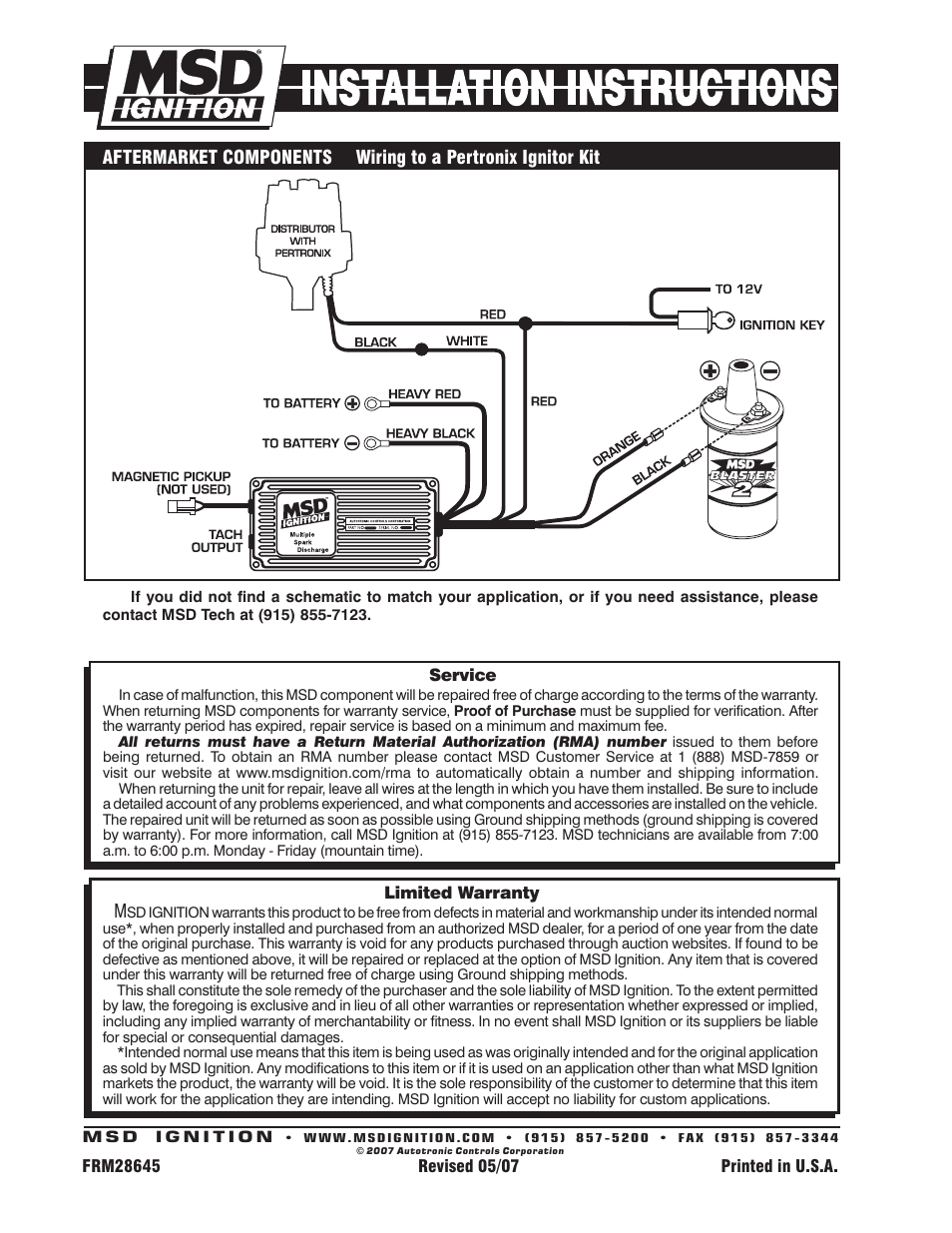

Msd 6 series 6a, pn 6200; I see a wiring diagram that shows a cd type coil with the 6al box. Before installing the msd alternator disconnect the battery cables.

A wiring diagram to connect the msd power grid system controller to a 6al can be found in the instructions for the.controllers are supplied with wiring harness and components you need for install plus, vibration mounts. After cutting the loop(s), turn the wire ends away from each other so they cannot come into contact. It has a pertronix ignitor kit.
