The mains electrical and other wiring work first. Honeywell wiring diagrams for the correct wiring of bdr91’s for combi boilers, motorised zone valves and s plan and y plan systems is on page 44 to page 47 of the evohome installation manual and the ‘bdr91 reset procedure’ is on page 19, step 1 (it says press and hold the button for 15 seconds, but in practice just press and hold until.

Honeywell Evohome Wiring Diagram

Let me start with what i have in my house.

Evohome wiring diagram. The relay powers the boiler live input. Wire up the heating system 3 and bind them to the evohome controller step 1: Help with evohome opentherm bridge.

System test 29 configuration and modification 37 appendix 41 evohome installation guide 1 Honeywell reserve the right at any time and without notice to change any In this guide step 1:

I have comepletley disconnected and removed the clock and the room thermostat. Hello all, first post here! This is my interpretation of the revised wiring diagram based on the new system spec.

Any ideas which numbers i have to wire into, not sure which one does the normal thermostat and which ones are the override and have no instructions or diagrams click to expand. Wire up the heating system evohome communicates using wireless on a robust 868mhz signal that is unaffected by common remote controls or wifi. Figures f ) to connect.

In this guide step 1: I have connected the r8810 opentherm bridge to the boiler connection x2, pins 1 & 2 as per the wiring diagram in the manual. You can use the same principle to wire to motorised zone valv.

Honeywell wiring diagrams for the correct wiring of bdr91’s for combi boilers, motorised zone valves and s plan and y plan systems is on page 40 to page 46 of the evohome installation guide and the ‘bdr91 reset procedure’ is on page 17, step 1 (it says press and hold the button for 15 seconds, but in practice just press and hold until you. Set up your evohome controller 9 step 3: Inverter circuit diagram research cell research articles.

Schematic diagram cool room introducing our free voip software communicate with. Some devices need mains power or to be connected to external equipment and it's best to wire up these items first to simplify the binding process later in the setup. Some devices need mains power or to be connected to external equipment and it's best to wire up these items first to simplify the binding process later in the setup.

Tuner information center sansui tuners. Evohome 2 off t87rf2033 single zone thermostat for boxed in radiators 4. Its typical y plan system with:

1 and 2 but you will have to turn the thermostat all the way up on the megaflo because you want the evohome temperature probe/thermostat to do the work. Ldr circuit diagram build electronic circuits. One evohome controller (and wall mounting kit), 17 wireless radiator controllers and a hot water.

Wire up the heating system 3 step 2: Diagram honeywell wiring y plan full version hd quality how a heating system works design boiler boffin s central evohome ing diynot forums faq pump overrun st9400 and dt92e manualzz sundial pack 7 day y606a1003 supremeplumb com diagrams with greenstar worcester for incorporating programmer does an work unvented cylinder 2 port valve diagram. Injunction of 2 wires is generally indicated by black dot at the junction of two lines.

It’s a good idea to carry out all the mains electrical and other wiring work first. Evohome wiring diagram for thermostat your home where can i find a 2 / 6. Wire up the heating system evohome communicates using wireless on a robust 868mhz signal that is unaffected by common remote controls or wifi.

System test 29 configuration and. Hi, i've just purchased evohome and am getting my head round the wiring required. Where three plans are illustrated there is one for wired wireless and wireless enabled controls.

Wire up your heating system connect all mains powered devices to the heating system 3 ollow the wiring diagram (see appendix: Evohome wiring diagram contohsoal co. We are the leading suppliers of domestic heating and combustion controls in the uk with products that include time, temperature, gas and water controls.

As of now it works, no major problems but there is one thing that bothers me. I have included wiring diagram of how i fitted evohome into my existing system. The main reasons these errors occur is because the evohome installation guide is not honeywell wiring diagrams for the correct wiring of bdr91's for combi.

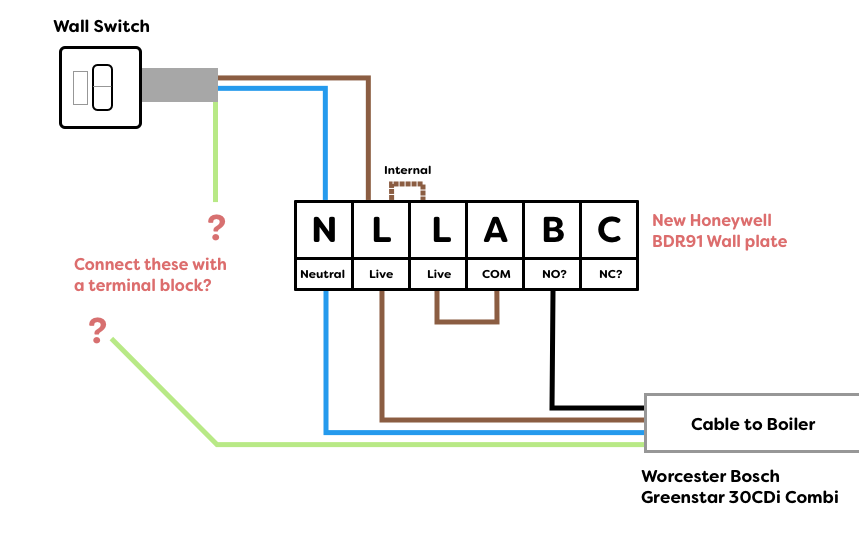

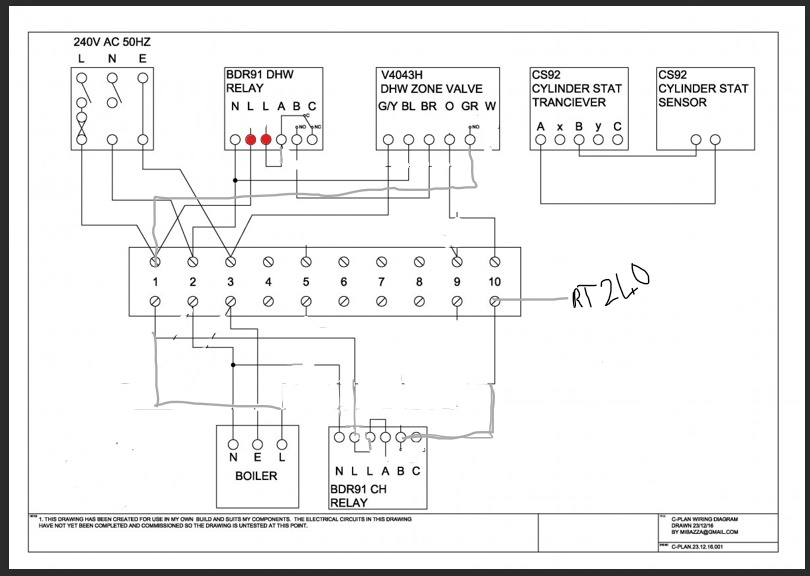

I've attached the existing wiring diagram, and a diagram. My personal experience of the honeywell evohome system is that it is very easy to honeywell wiring diagrams for the correct wiring of bdr91's for combi. Some devices need mains power or to be connected to external equipment and it's best to wire up these items first to simplify the binding process later in the setup.

The mains electrical and other wiring work first. Figure 5 wiring for a basic boiler (not requiring a pump overrun). Wire up the heating system evohome communicates using wireless on a robust 868mhz signal that is unaffected by common remote controls or wifi.

Power up and bind devices 13 step 4: The bdr91 for the hot water shows an unlabelled connection, which is actually to the c contact. System’ guide, match each device to the room or zones in your plan.

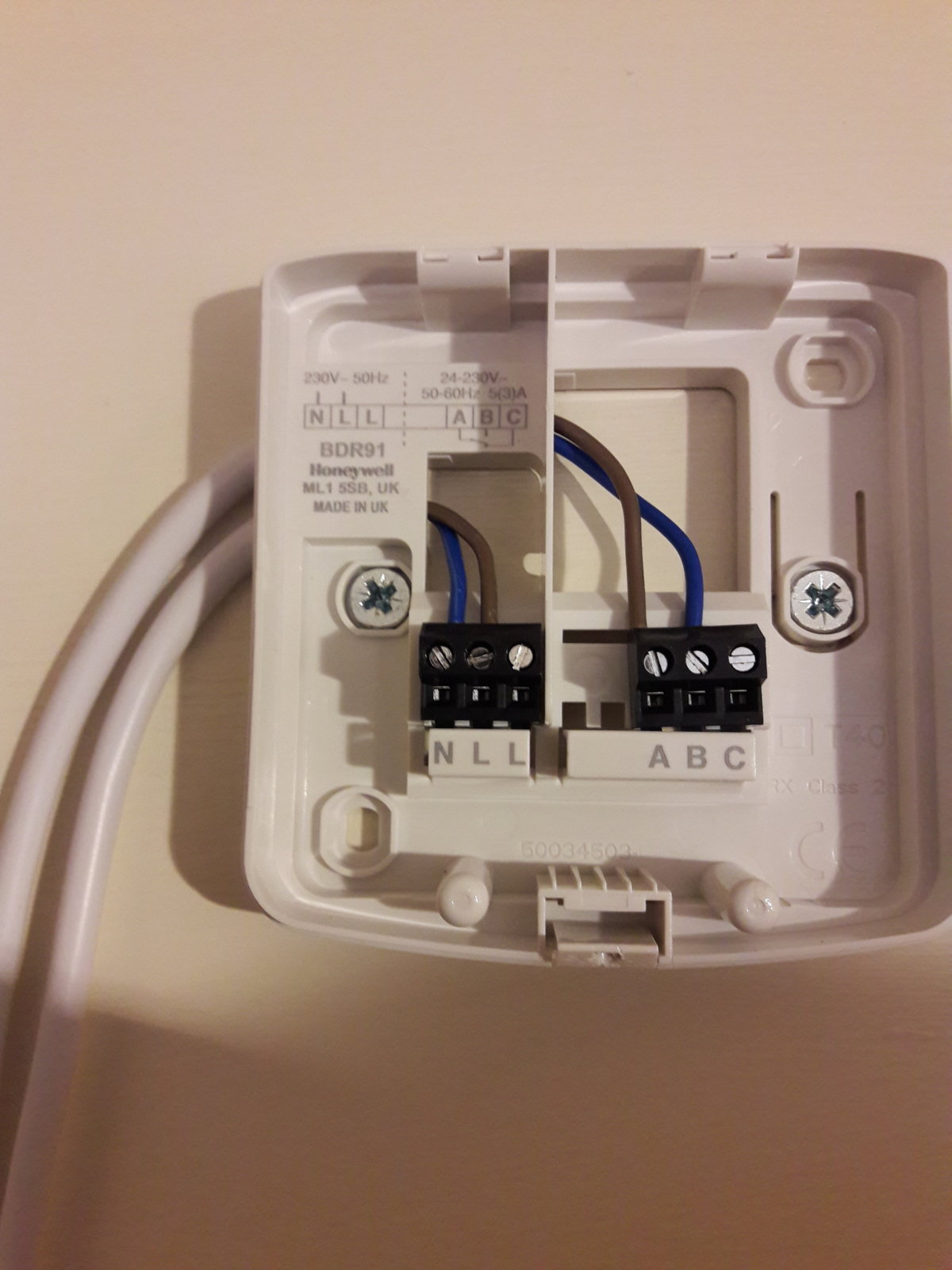

Richard goes through how to wire a honeywell bdr91 wireless relay box as a boiler demand relay. The products needed for this installation were: And the wiring diagram you posted back in 2016:

Wire up the heating system 3 step 2: I was planning to use hot water kit for cylinder and 2 wireless sensors for radiators. Pairing & testing services which included two bdr91s;

One with the hot water kit and one loose. Nothing else is connected between pins 1 & 2 of x2. Power up and bind devices 13 step 4:
